SiSiB® LR2240
SiSiB® LR2240

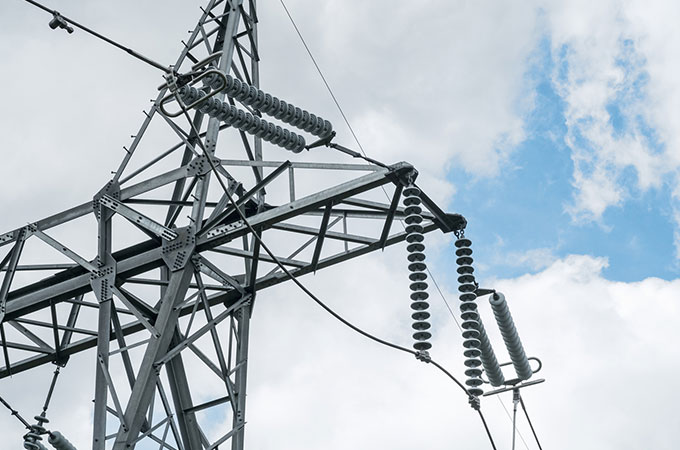

LSR for High Voltage Insulating Cable Accessories

SiSiB® LR2240 series are paste-like, easily pigmentable two-component liquid silicone rubber for injection molding process. It is designed for high voltage cable accessories.


SiSiB® LR2240

Technical Data



Color

Grey or Transparent

Viscosity (Pa.s)

80-100

Density (g/cm3)

1.08-1.12

Hardness (Shore A)

40-44

Tensile Strength (MPa)

Min. 7

Elongation (%)

Min. 420

Tear Strength (kN/m)

Min. 18

Volume Resistivity (Ω.cm)

Min. 1.0 X1015

Dielectric Constant

Max. 3.0

Dissipation Factor

Max. 0.003

Tracking Resistance

1A4.5

Dielectric Strength (KV/mm)

Min. 23




Curing condition: 10 minutes at 140°C and post cure 4 hours at 200°C.



Application


Packing and Storage


  • SiSiB® LR2240 is supplied in 20Kg box, with plastic bag inside.


  • In the unopened original container it has a shelf life of one year in a dry and cool place.


Documents

DownloadSiSiB® LR2240 Technical Data Sheet
