SiSiB® HR0500

High Bound Resilience Heat Cured Silicone Rubber

SiSiB® HR05xx is the high rebound resilience heat cured silicone elastomers for molding.

SiSiB® HR0500

Technical Data

Product	HR0550	HR0560	HR0570
Appearance	Translucent	Translucent	Translucent
Hardness (Shore A)	50+/-2	60+/-2	70+/-2
Williams Plasticity	190+/-20	185+/-35	260+/-30
Tensile Strength (MPa)	Min.5.5	Min.7.0	Min.8.0
Elongation (%)	Min. 250	Min. 180	Min. 150
Tensile Set (%)	Max. 8.0	Max. 8.0	Max. 8.0
Tear Strength (KN/m)	Min. 15.0	Min. 14.0	Min. 14.0
Curing Agent	C-8	C-8	C-8
Curing Agent Content	2.0%	2.0%	2.0%
Curing Condition	170°C×5min	170°C×5min	170°C×5min

Application

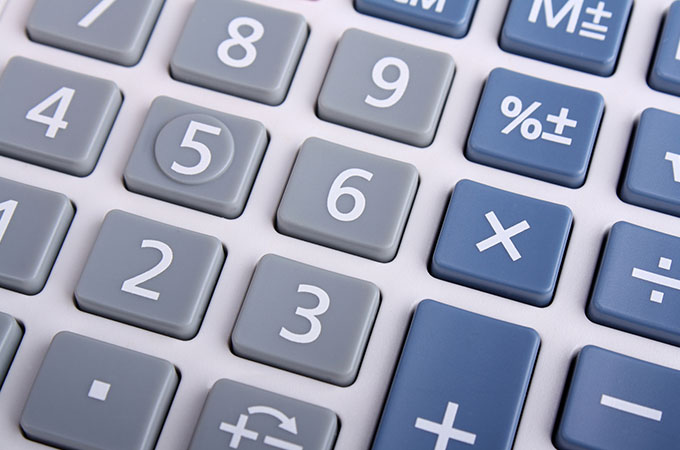

This high temp rubber is used for long life Keypad, gasket/roller, and parts.

Packing and Storage

SiSiB® HR05xx htv solid silicone sheet is supplied in 20Kg box, with plastic bag inside.

In the unopened original container it has a shelf life of one year in a dry and cool place.

Documents

Download

SiSiB® HR0500 Technical Data Sheet
