SiSiB® HR6100

Oil Resistant Heat Cured Silicone Rubber

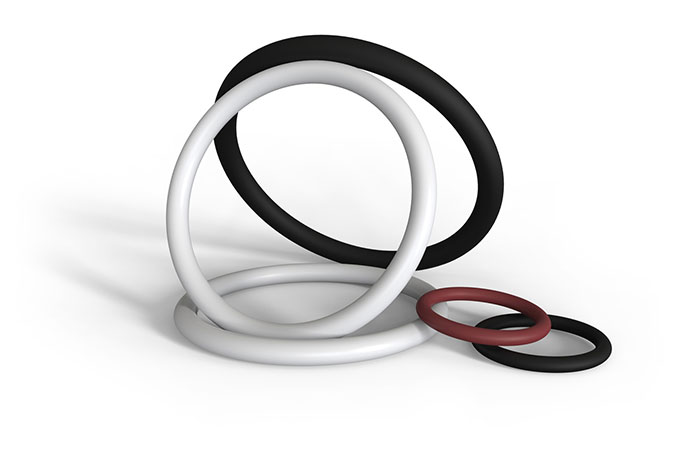

SiSiB® HR61xx is oil-resistance silicone rubber used for sealing products, tubes or other parts. It is suitable for molding and extrusion.

SiSiB® HR6100

Technical Data

Product	HR6130	HR6140	HR6150
Appearance	Off-white	Off-white	Off-white
Hardness (Shore A)	30+/-3	40+/-3	50+/-3
Tensile Strength (MPa)	Min.4.0	Min.4.0	Min.6.0
Elongation (%)	Min. 400	Min. 350	Min. 300
Tensile Set (%)	Max. 8.0	Max. 8.0	Max. 8.0
Tear Strength (KN/m)	Min. 8.0	Min. 10.0	Min. 12.0
Curing Agent	C-8	C-8	C-8
Curing Agent Content	2.0%	2.0%	2.0%
Curing Condition	170°C×5min	170°C×5min	170°C×5min

Product	HR6160	HR6170	HR6175
Appearance	Off-white	Off-white	Off-white
Hardness (Shore A)	60+/-3	70+/-3	75+/-3
Tensile Strength (MPa)	Min.5.0	Min.6.0	Min.4.0
Elongation (%)	Min. 200	Min. 150	Min. 80
Tensile Set (%)	Max. 8.0	Max. 8.0	Max. 8.0
Tear Strength (KN/m)	Min. 12.0	Min. 12.0	Min. 10.0
Curing Agent	C-8	C-8	C-8
Curing Agent Content	2.0%	2.0%	2.0%
Curing Condition	170°C×5min	170°C×5min	170°C×5min

Application

Suitable silicone rubber mold making materials for sealing products, tubes or parts.

Packing and Storage

SiSiB® HR6100 htv solid silicone rubber cord is supplied in 20Kg box, with plastic bag inside.

In the unopened original container it has a shelf life of one year in a dry and cool place.

Documents

Download

SiSiB® HR6100 Technical Data Sheet
