Name: SiSiB® FSE8100
Brand: Nanjing SiSiB Silicones Co., Ltd.
Price: 100 USD

Technical Data

Properties / Product	FSE8130	FSE8140	Method
Density g/cm³	1.42	1.43	ASTM D792
Hardness Shore A	30	40	ASTM D2240
Tensile Strength (MPa) Die C	6.0	7.0	ASTM D412
Elongation at Break (%) Die C	165	225	ASTM D412
Tear Strength (KN/m) Die B	14	20	ASTM D624
Compression Set (22h/177°C)/%	12	11	ASTM D395
Volume Change (Reference Fuel B) (23°C x 70hr)	22	20	ASTM D471

Properties / Product	FSE8160	FSE8180	Method
Density g/cm³	1.48	1.50	ASTM D792
Hardness Shore A	60	80	ASTM D2240
Tensile Strength (MPa) Die C	7.0	5.5	ASTM D412
Elongation at Break (%) Die C	200	125	ASTM D412
Tear Strength (KN/m) Die B	20	15	ASTM D624
Compression Set (22h/177°C)/%	12	10	ASTM D395
Volume Change (Reference Fuel B) (23°C x 70hr)	19	19	ASTM D471

Curing agent: 0.55 pbw 2,5-dimethyl-2,5-di(tert-butylperoxy)hexane (DHBP).

Curing conditions: 10min/170˚C, post-curing: 4h/200˚C in hot air

Applications

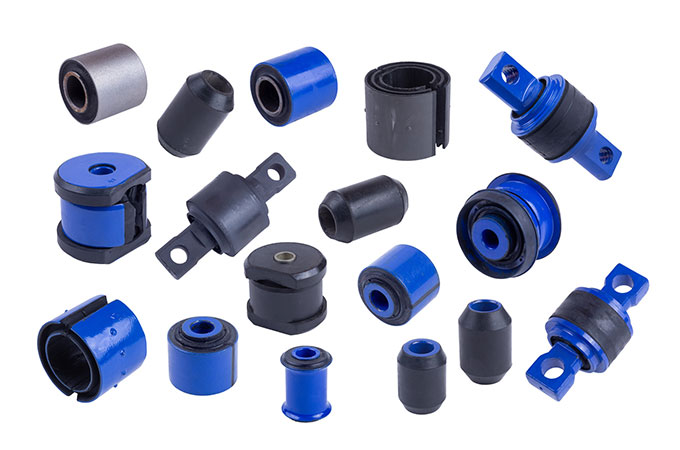

SiSiB® FSE8100 with fluorosilicone properties is used for economic molded, extruded, and calendered parts including O-rings, gaskets, fuel-line quick-connect seals, oil seals, sealing strips, diaphragms, membranes, valves, hydraulic and electrical clamp blocks.
